63ZYT02A 12v 24v 36v 40v 230v PMDC Brush Dc Electric Motor 12 volt 24 volt 100 watt 3000rpm Rated 0.31Nm 100W

Brand Name : SMART AUTOMATION

Model Number : OEM

Certification : CE

Place of Origin : Changzhou CHINA

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : To be negotiated

MOQ : 50

Price : To be negotiated

Delivery Time : To be negotiated

Payment Terms : D/A, T/T, L/C,D/P

Warranty : 3years

Port : Shanghai

Current : customized for different power

Speed(RPM) : 3000rpm

Continuous Current(A) : customed

Usage : Car, Electric Bicycle, FAN, Home Appliance, Machine

Type : Micro Motor

Torque : 0.31N.m

Construction : Permanent Magnet

Commutation : Brushless

Protect Feature : Drip-proof

Efficiency : IE 1

Contact Now

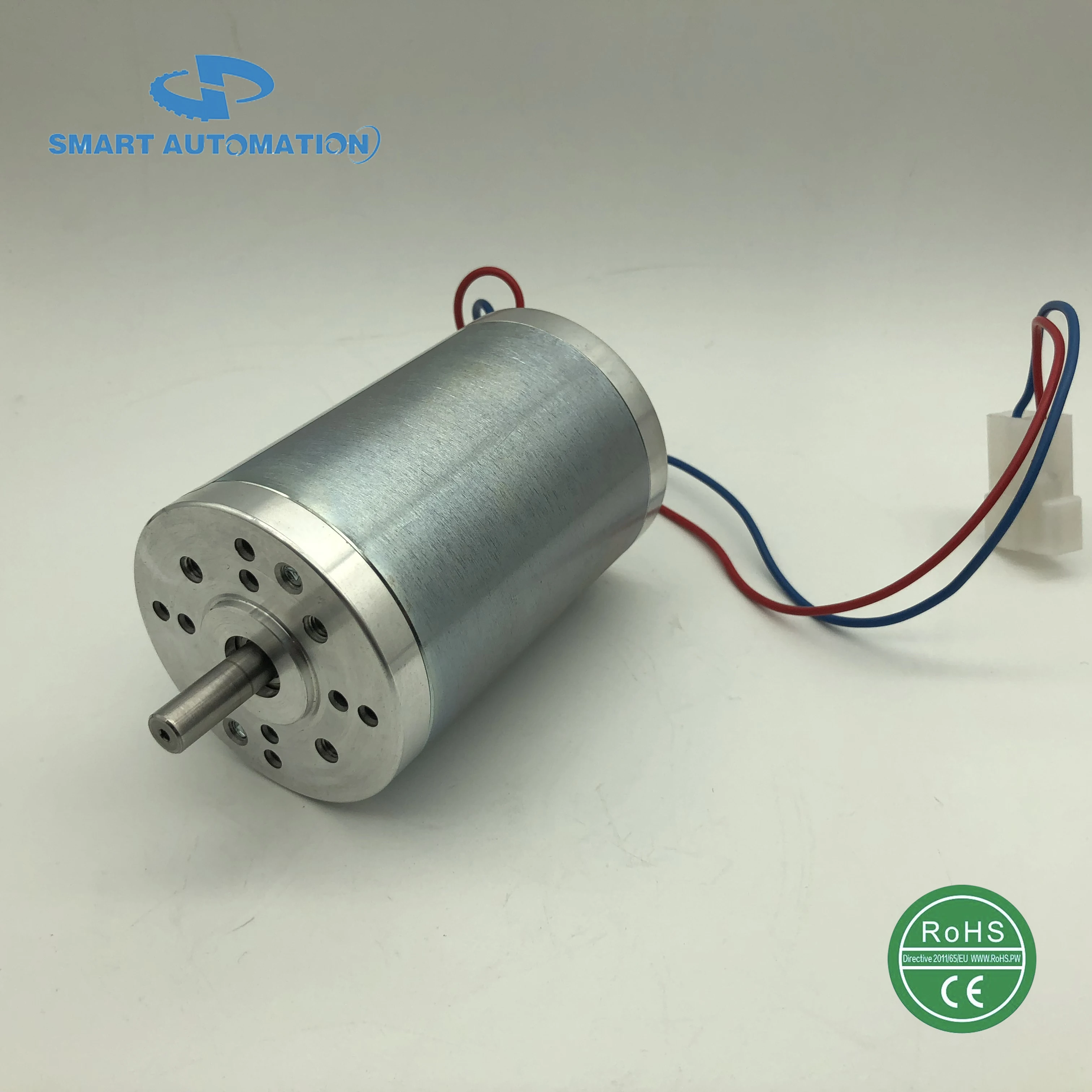

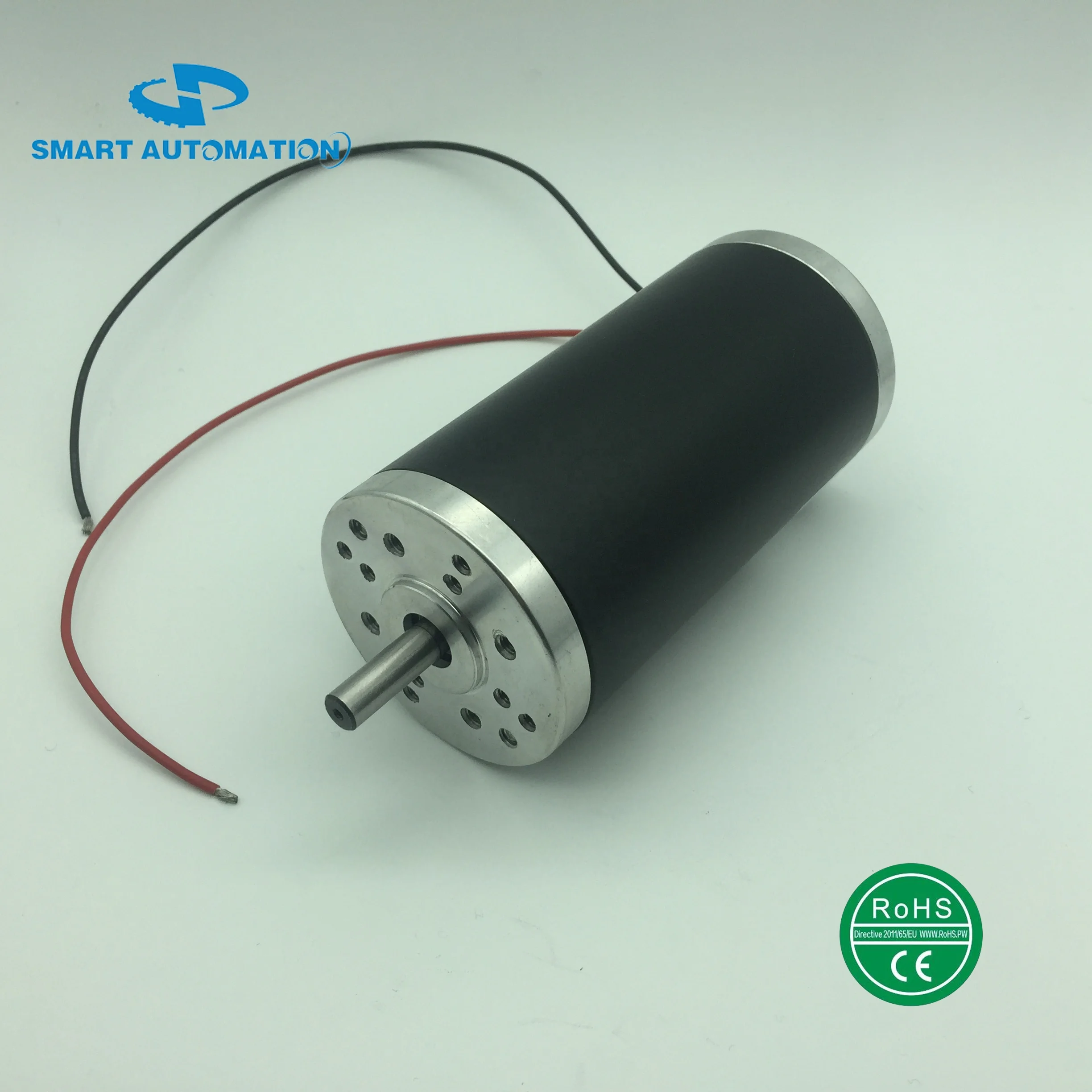

63ZYT02A high torque Brushed 3000rpm dc Motor, rated 0.31Nm 100W

or technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection

High temperature Class H insulation

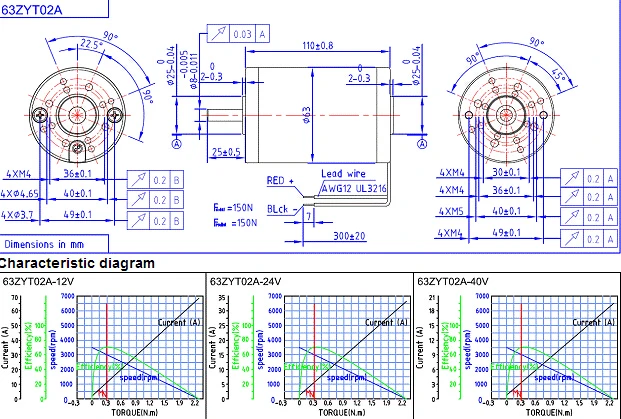

Model	63ZYT02A
Rated voltage	V dc	12	24	40
Continuous rated speed	rpm	3000	3000	3000
Continuous rated torque	mN.m	310	310	310
Continuous current	A	11.5	5.8	3.5
Starting torque	mN.m	2000	2000	2000
Starting current	A	59	29.5	17.5
No load speed	rpm	3500	3500	3500
No load current	A	2.0	1.2	0.8
Demagnetization current	A	110	55	33
Rotor inertia	Gcm2	600	600	600
Weight of motor	g	1200	1200	1200
Motor length	mm	110	110	110

63ZYT02A 12v 24v 36v 40v 230v PMDC Brush Dc Electric Motor 12 volt 24 volt 100 watt 3000rpm Rated 0.31Nm 100W
